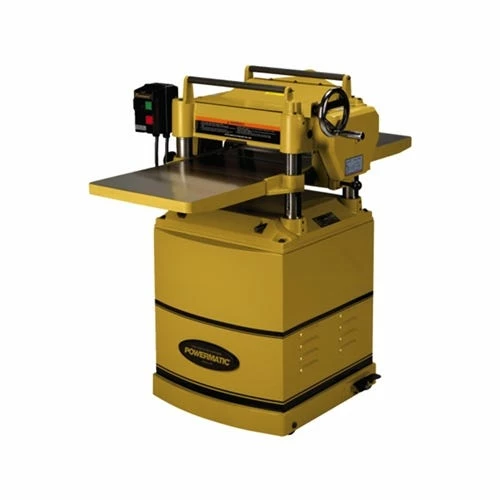

Powermatic 15HH 15″ Planer With Helical Cutterhead 1791213

Powermatic

Powermatic 15HH 15 Planer with Helical Cutterhead 1791213

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives; and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings.

FEATURES:

• The helical cutterhead with 74 four-sided knife inserts provides smoother; quieter cutting and finer finish than conventional systems.
• Powerful 3HP TEFC motor controlled with a magnetic switch for safety.
• Three V-belts transfer maximum power to the cutterhead.
• Serrated steel infeed roller and smooth steel outfeed roller allow for 1/4″ maximum depth of cut and trouble free operation.
• Large cast iron handwheel positions table quickly and easily.
• Large; precision ground cast iron table and extensions provide maximum workpiece support.
• Two speed gearbox features automatic chain tensioner.
• One-piece welded steel stand has built-in lockable casters.
• Steel top-mounted return rollers speed repetitive cuts.
• Angled dust chute with 4″ port positions collection hose away from the work area while providing efficient chip and dust collection.
• Table locks firmly in place; preventing movement during cutting

STANDARD EQUIPMENT:

• 3HP TEFC motor with magnetic controls.
• Closed stand with built-in casters.
• 4″ diameter dust port.
• Cast iron extension tables.

SPECIFICATIONS:

Style (Type)	Planer
Type of Cutterhead	Helical
Knife Size (L x W x T)	15 x 15 x 2.5
Cutterhead Speed (RPM)	4;500
Cutterhead Diameter (In.)	2-7/8
Number of Knives	74
Maximum Depth of Cut (In.)	1/4
Maximum Full Width Depth of Cut (In.)	1/8
Maximum Planing Width (In.)	14-7/8
Maximum Planing Thickness (In.)	6
Minimum Planing Length (In.)	8
Feed Rate (FPM)	16/20
Infeed Roller Diameter (In.)	2.07
Segmented Infeed Roller Diameter (In.)	2.07
Outfeed Roller Diameter (In.)	2.07
Bed Rollers Adjustable from Front	N.A.
Table Size with Extensions (L x W) (In.)	15 x 48
Table Support	4 Column
Column Diameter (In.)	2-3/16
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase	1
Motor Voltage (V.)	230 only
Recommended Circuit Size (Amps.)	30

“
