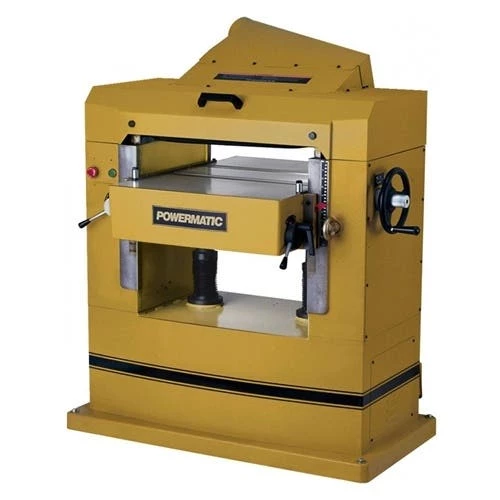

Powermatic 201HH 22″ Planer 7.5HP 1PH 230/460V W/ Helical Head 1791268

Powermatic

201HH 22 Planer 7.5HP 1PH 230/460V w/ Helical Head 1791268

This 1;300 lb. heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come. With a hefty 7-1/2 horsepower motor; the 201HH Planer is perfect for the small to medium shop with continuous planing requirements.

FEATURES:

• Helical cutterhead with 125 four sided carbide knife inserts provides smoother; quieter cutting and finer finish than conventional systems.
• Segmented infeed roller with sectional chipbreaker for planing multiple height stock.
• All cast iron construction; the heavy cast iron table travels on two large lead scews.
• Roller bearing-mounted feed rollers for smooth operation and long life.
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces.
• 2 feed speeds – 20/30 fpm – accommodates rough and fine finish work.
• Dust chute with 5″ port for dust collection.

SPECIFICATIONS:

Style (Type)	Floor
Type of Cutterhead	Helical
Cutterhead Speed (RPM)	4;800
Cutterhead Diameter (In.)	3-1/4
Number of Knives	125 Four-Sided Carbide Inserts
Maximum Depth of Cut (In.)	3/16
Maximum Full Width Depth of Cut (In.)	3/16
Maximum Planing Width (In.)	22
Maximum Planing Thickness (In.)	9-1/4
Minimum Planing Length (In.)	10
Feed Rate (FPM)	20/30
Number of Speeds	2
Infeed Roller Diameter (In.)	3
Segmented Infeed Roller Diameter (In.)	3
Outfeed Roller Diameter (In.)	3
Bed Rollers Adjustable from Front	2
Table Size (L x W) (In.)	32-1/4 x 24
Table Support	2 Column
Column Diameter (In.)	2-1/2
Digital Readout	Inch / Metric
Dust Collection Minimum CFM Required (CFM)	900
Motor Power (HP)	7-1/2
Motor Phase	3
Motor Voltage (V.)	230/460
Prewired Voltage (V.)	230
Recommended Circuit Size (Amps.)	30/15

“
