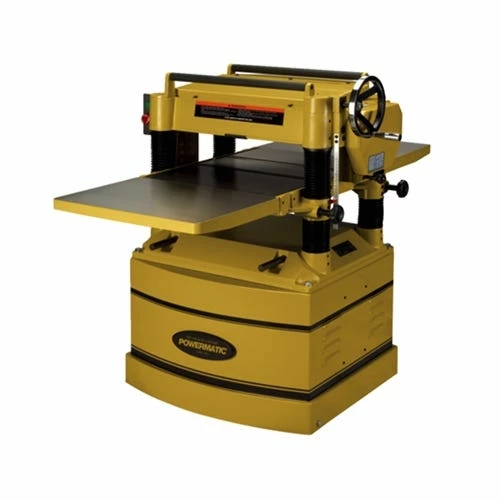

Powermatic 209 20 Planer 1791296
This heavy duty planer offers performance and value; loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20″ planing capacity will handle the most demanding work.
FEATURES:
- Knife setting gauge.
- 5HP motor and 20″ planing capacity for heavy duty work.
- Fully enclosed base cabinet with integrated casters for shop mobility.
- Cast iron table with extensions creates a big 55-1/2″ x 20″ working area.
- Four feed speeds – 24 and 31 FPM; 16 and 20 FPM with gear change – provide versatility.

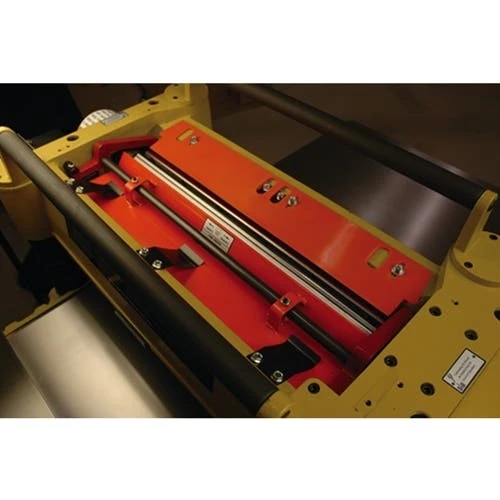

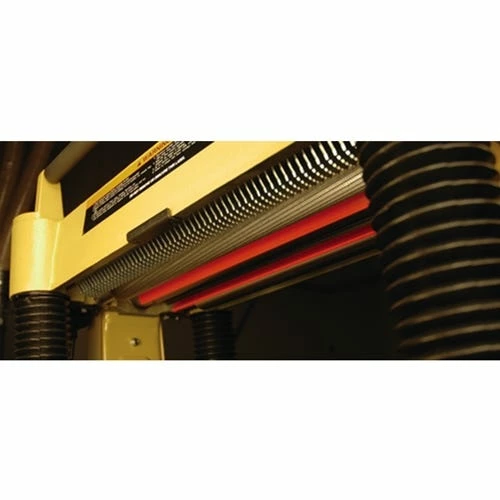

- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity.
STANDARD EQUIPMENT:
- Single-sided knives.
- 5″ diameter dust port.
- Cast iron extension tables.
SPECIFICATIONS:
| Style (Type) | Planer |
|---|---|
| Type of Cutterhead | Straight Knife |
| Knife Size (L x W x T) | 20 x 1 x 1/8 |
| Cutterhead Speed (RPM) | 5;000 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Cuts Per Minute | 20;000 |
| Number of Knives | 4 |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Maximum Planing Width (In.) | 20 |
| Maximum Planing Thickness (In.) | 8 |
| Minimum Planing Length (In.) | 6-3/4 |
| Feed Rate (FPM) | 24/31 & 16/20 |
| Number of Speeds | 4 |
| Range of Speeds | 24/31 & 16/20 |
| Bed Rollers Adjustable from Front | N.A. |
| Table Support | 4 Column |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Power (HP) | 5 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 only |
| Motor Current (Amps) | 23 |
| Recommended Circuit Size (Amps.) | 40 |
“
