Powermatic

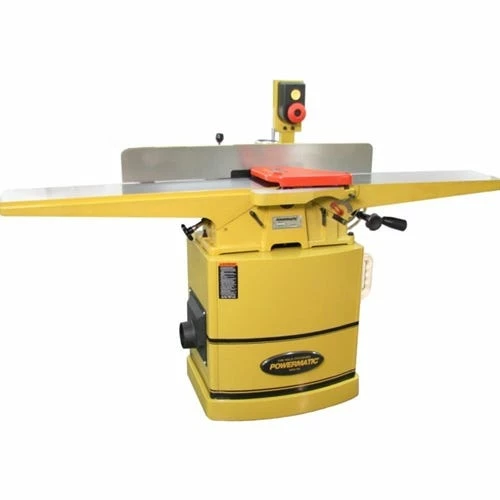

Powermatic 60C 8 Jointer 1610084K
This 8-inch jointer meets the demand for accuracy while combining unique; user-friendly functions. The infeed table lever can be used to rapidly position table height; then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system; smoothly operated by a simple handwheel.
FEATURES:
- High-speed heat-treated steel knives.
- Extra long tables are mounted on dovetailed ways; for extended workpiece support.
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth.
- High mount switch for operator convenience.
- Handwheel operated worm gear system for smooth fence tilting.
- Magnetic push blocks can be stored on the machine within constant reach.
- Non-mar fence insert protects table surface.
- Large extension rest on infeed table for rabbeting.
SPECIFICATIONS:
| Number of Knives | 3 |
|---|---|
| Standard Knife Size (L x W x T) (In.) | 8 x 11/16 x 1/8 |
| Cuts Per Minute | 21;000 |
| Cutterhead Diameter (In.) | 3 |
| Cutterhead Speed (RPM) | 7;000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Table Size (L x W) (In.) | 73 x 8-1/2 |
| Table Height from Floor (In.) | 32 |
| Infeed Table Length (In.) | 35-1/4 |
| Outfeed Table Length (In.) | 35-1/2 |
| Rabbeting Capacity (In.) | 1/2 |
| Fence Size (L x H) (In.) | 38 x 4-3/4 |
| Fence Tilt (Deg.) | 45 Forward; 45 Backward |
| Fence Positive Stops (Deg.) | 45; 90; -45 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 2 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 Only |
| Motor Current (Amps) | 9 |
| Recommended Circuit Size (Amps.) | 20 |
“
