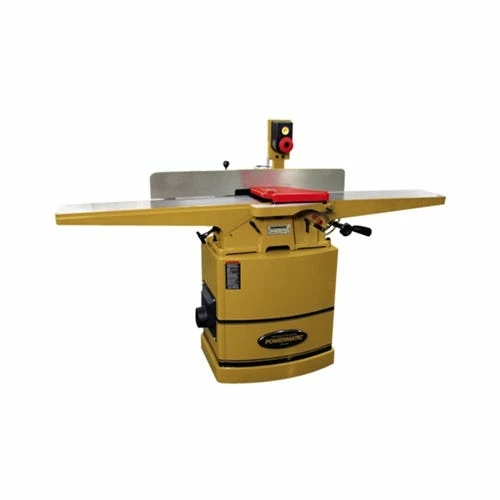

Powermatic 60HH 8″ Jointer W/ Helical Head Cutter 1610086K

Powermatic

Powermatic 60HH 8 Jointer w/ Helical Head Cutter 1610086K

This 8-inch jointer meets the demand for accuracy while combining unique; user-friendly functions. The infeed table lever can be used to rapidly position table height; then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system; smoothly operated by a simple handwheel.

FEATURES:

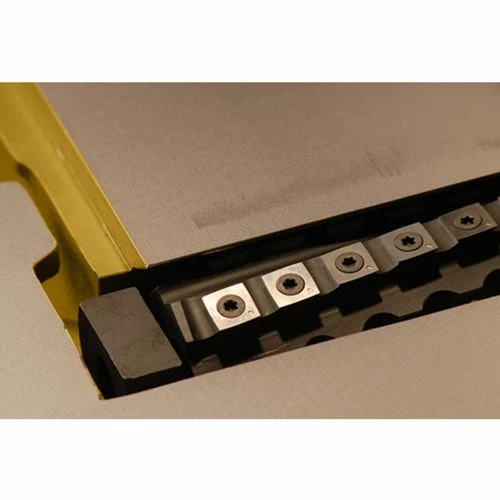

• Helical cutterhead with 4-sided carbide inserts provides smoother; quieter cutting and a superior finish.
• Extra long tables are mounted on dovetailed ways; for extended workpiece support.
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth.
• High mount switch for operator convenience.
• Handwheel operated worm gear system for smooth fence tilting.
• Magnetic push blocks can be stored on the machine within constant reach.
• Non-mar fence insert protects table surface.

SPECIFICATIONS:

Number of Knives	54
Helical Knife Size (L x W x T) (In.)	15 x 15 x 2.5
Cutterhead Speed (RPM)	7;000
Cutting Capacity (W x D) (In.)	8 x 1/2
Table Size (L x W) (In.)	73 x 8-1/2
Table Height from Floor (In.)	32
Infeed Table Length (In.)	35-1/4
Outfeed Table Length (In.)	35-1/2
Rabbeting Capacity (In.)	NA
Fence Size (L x H) (In.)	38 x 4-3/4
Fence Tilt (Deg.)	45 Forward; 45 Backward
Fence Positive Stops (Deg.)	45; 90; -45
Dust Collection Minimum CFM Required (CFM)	450
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	2
Motor Phase	1
Motor Voltage (V.)	230 only
Motor Current (Amps)	9
Recommended Circuit Size (Amps.)	20

“
