Powermatic
Powermatic PJ882 8 Parallelogram Jointer w/ Standard Knives 1610079

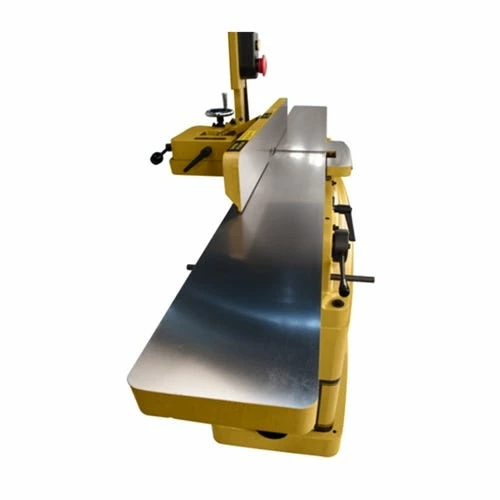

The 8″ Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82″ bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees.
FEATURES:
- Extra long 82″ table for expanded work support.
- Parallelogram design helps maintain table parallelism and eases table raising and lowering.

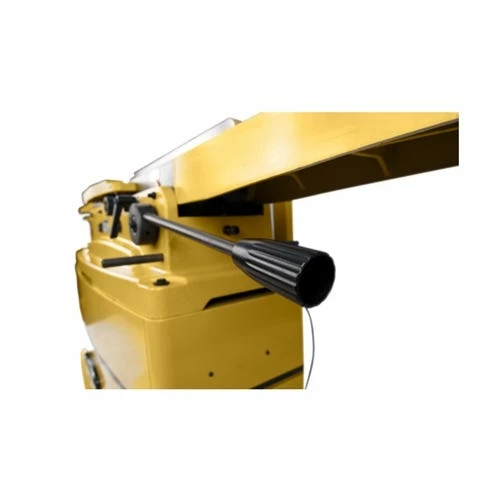

- Handwheel with worm gear system for precise fence tilting (Patented).

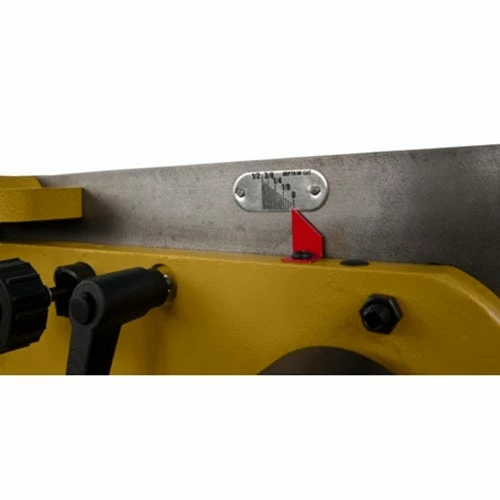

- 1/8″ depth of cut limiter for fast table positioning.
- High-mount switch for operator convenience.
- No-mar fence insert protects table.
SPECIFICATIONS:
| Number of Knives | 3 |
|---|---|
| Standard Knife Size (L x W x T) (In.) | 8 x 11/16 x 1/8 |
| Cuts Per Minute | 21;000 |
| Cutterhead Diameter (In.) | 3-1/16 |
| Cutterhead Speed (RPM) | 7;000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Table Size (L x W) (In.) | 82 x 8 |
| Table Height from Floor (In.) | 31-5/16 |
| Infeed Table Length (In.) | 44 |
| Outfeed Table Length (In.) | 38 |
| Rabbeting Capacity (In.) | 1/2 |
| Fence Size (L x H) (In.) | 38-3/16 x 4-3/4 |
| Fence Tilt (Deg.) | 45 Forward; 45 Backward |
| Fence Positive Stops (Deg.) | 45; 90; -45 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 2 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 Only |
| Motor Current (Amps) | 9 |
| Recommended Circuit Size (Amps.) | 20 |
“
