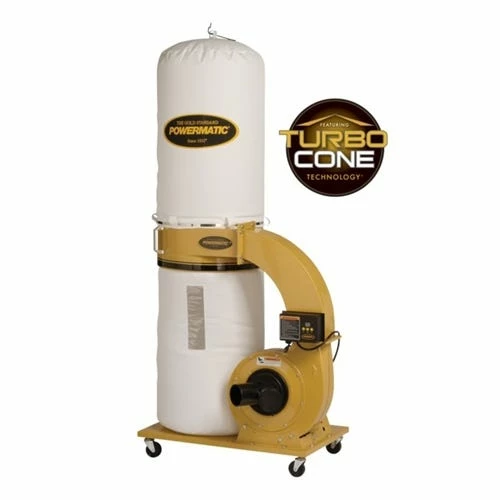

Powermatic PM1300 Dust Collector W/ Bag Filter Kit 1791078K

• Powermatic
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• All-metal duct construction for rigidity and improved air flow
• Dual 4 dust ports for simultaneous collection from two machines
• 1-3/4HP motor offers plenty of power for effective air movement
• Cloth collection bag with view window uses snap ring for rapid installation/removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Tall filter bag requires less cleaning due to the larger surface area
• Four swivel casters for easy maneuverability
• Specifications
• Part Number:    1791078K
• Remote Control:    Yes
• Sound Rating:    75 – 90 dB
• 1-Hose Connection Diameter:    6 in
• 2-Hoses Connection Diameter:    4 in
• Bag Diameter:    20 in
• Filter Bag/Canister Length:     48 in
• Collection Bag Capacity:     10 cubic foot
• Collection Bag Length:    30 in
• Air Flow @ 6″:     1;064 cu.ft/min
• Static Pressure:    11.31 inch of water
• Particle Size (Micron):    96% of 30 micron particles
• Velocity @ 6″:    5;374 foot per minute
• Air Inlet:    (1) at 6″ or (2) at 4″
• Impeller Diameter:    12 in
• Impeller Fins:    6
• Impeller Material:    steel
• Separator Tank Diameter:    20 in
• Separator Tank Height:     10 in
• Motor Power:     1 HP
• Motor Phase:     1 Ph
• Motor Voltage:     115 / 230 V
• Prewired Voltage:     115 V
• Motor Current:     15 / 7.5 A
• Web Description:     PM1300TX-BK Dust Collector; 1.75HP 1PH 115/230V; 30-Micron Bag Filter Kit
• Model Number:     PM1300TX-BK
• Brand:     Powermatic
• Overall Dimensions:     45 x 23 x 23 (shipped); 37 x 29 x 79 (assembled)
• Height:     23 inch
• Width:    23 inch
• Length:     45 inch
• Net Weight:     127 pound

“
