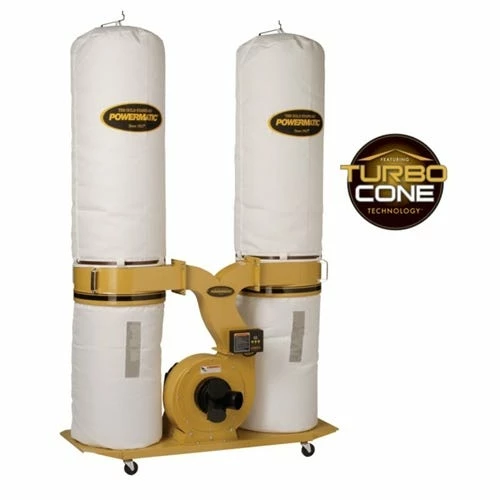

Powermatic PM1900 3HP Dust Collector W/ Bag Filter Kit 1792071K

• Powermatic
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• All-metal duct construction for rigidity and improved air flow
• 30-micron filter bags for improved capture of fine dust particles
• The large impeller is powered by a 3HP motor for peak performance
• Triple 4 dust ports allow for several hoses to be attached at the same time
• Cloth collection bags with view window use a snap ring for rapid installation/removal
• 10 cubic feet collection bag capacity reduces number of bag changes.
• Tall filter bags require less cleaning due to the larger surface area
• Four swivel casters for easy maneuverability
• Also available with 3 phase motor. Call (800) 242-4424 for details.
• Specifications
• Part Number:    1792071K
• Trademark:     TurboCone
• Remote Control:     Yes
• Sound Rating:     86 – 92 dB
• 1-Hose Connection Diameter:     8 in
• 2-Hoses Connection Diameter:     4 in
• 3-Hoses Connection Diameter:     4 in
• Bag Diameter:     20 in
• Filter Bag/Canister Length:     48 in
• Collection Bag Capacity:    10 cubic foot
• Collection Bag Length:    30 in
• Air Flow @ 4:    234 cu.ft/min
• Air Flow @ 8″:    1;754 cu.ft/min
• Static Pressure:    11.31 inch of water
• Particle Size (Micron):    96% of 30 micron particles
• Velocity @ 4″:    5;200 foot per minute
• Air Inlet:    (1) at 8″ or (3) at 4″
• Impeller Diameter:    14 in
• Impeller Fins:    7
• Impeller Material:     steel
• Separator Tank Diameter:    20 in
• Separator Tank Height:    10 in
• Motor Power:    3 HP
• Motor Phase:     1 Ph
• Motor Voltage:    230 V
• Prewired Voltage:    230 V
• Motor Current:    15 A
• Web Description:    PM1900TX-BK1 Dust Collector; 3HP 1PH 230V; 30-Micron Bag Filter Kit
• Model Number:    PM1900TX-BK1
• Brand:    Powermatic
• Overall Dimensions:    46 x 23 x 28 (shipped); 61 x 30 x 94 (assembled)
• Height:    28 inch
• Width:     23 inch
• Length:    46 inch
• Net Weight:    211 pound

“
