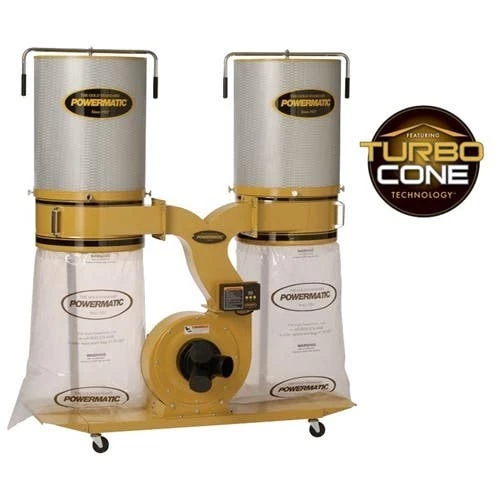

- Powermatic
- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- All-metal duct construction for rigidity and improved air flow
- 2-micron canister filters offer over six times filtering surface area of standard bags
- The large impeller is powered by a 3HP motor for peak performance
- Triple 4 dust ports allow for several hoses to be attached at the same time
- Cloth collection bags with view window use a snap ring for rapid installation/removal
- 10 cubic feet collection bag capacity reduces number of bag changes.
- Tall filter bags require less cleaning due to the larger surface area
- Four swivel casters for easy maneuverability
- Also available with 3 phase motor. Call (800) 242-4424 for details.
- Specifications
- Part Number:Â Â Â 1792072K
- Trademark:Â Â Â Â TurboCone
- Remote Control:Â Â Â Â Yes
- Sound Rating:Â Â Â Â 86 – 92 dB
- 1-Hose Connection Diameter:Â Â Â Â 8 in
- 2-Hoses Connection Diameter:Â Â Â Â 4 in
- 3-Hoses Connection Diameter:Â Â Â Â 4 in
- Bag Diameter:Â Â Â Â 20 in
- Filter Bag/Canister Length:Â Â Â Â 48 in
- Collection Bag Capacity:Â Â Â 10 cubic foot
- Collection Bag Length:Â Â Â 30 in
- Air Flow @ 4″:Â Â Â 234 cu.ft/min
- Air Flow @ 8″:Â Â Â 1;754 cu.ft/min
- Static Pressure:Â Â Â 11.31 inch of water
- Particle Size (Micron):Â Â Â 98% of 2 micron particles: 86% of 1 micron particles
- Velocity @ 4″:Â Â Â 5;200 foot per minute
- Air Inlet:Â Â Â (1) at 8″ or (3) at 4″
- Impeller Diameter:Â Â Â 14 in
- Impeller Fins:Â Â Â 7
- Impeller Material:Â Â Â Â steel
- Separator Tank Diameter:Â Â Â 20 in
- Separator Tank Height:Â Â Â 10 in
- Motor Power:Â Â Â 3 HP
- Motor Phase:Â Â Â Â 1 Ph
- Motor Voltage:Â Â Â 230 V
- Prewired Voltage:Â Â Â 230 V
- Motor Current:Â Â Â 15 A
- Web Description:Â Â Â PM1900TX-CK1 Dust Collector; 3HP 1PH 230V; 2-Micron Canister Kit
- Model Number:Â Â Â PM1900TX-CK1
- Brand:Â Â Â Powermatic
- Overall Dimensions:Â Â Â 46 x 23 x 28 (shipped); 61 x 30 x 94 (assembled)
- Height:Â Â Â 28 inch
- Width:Â Â Â Â 23 inch
- Length:Â Â Â 46 inch
- Net Weight:Â Â Â 268 pound
“
