Powermatic
PM2014 1HP 115V Input Wood Bench Lathe 1792014
For nearly one hundred years; Powermatic has been dedicated to woodworkers. As a market leader in woodturning; Powermatic is proud to offer the accessible PM2014 lathe.
FEATURES:
- Only requiring a 115V single phase power source; the inverter delivers 1HP; 230V; 3PH performance; giving users maximum speed with minimum input.
- The new ergonomic stand adjusts from centerline to floor from 34 to 46″ allowing the PM2014 to be accessible to users of a range of heights.
- Digital indexing and spindle speed readout are clearly visible on the magnetic repositionable control box.
- With a capacity of 14″ swing over bed and 20″ between centers which can be increased with the optional 13″ bed extension.
- Premium sliding headstock feature allows greater clearance when positioned at the end of the bed for outboard turning.
- Robust cast iron bed reduces vibration when turning larger and more precise pieces.

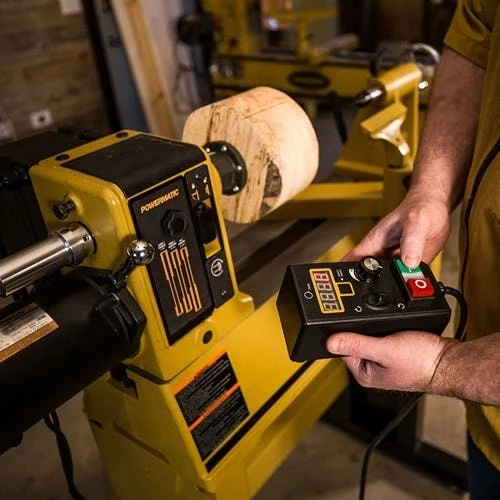

- The easy-to-read digital speed and indexing readout is conveniently located on the movable control box and delivers accurate speed readings and simplifies the indexing process for professional precision.
- The robust cast iron bed reduces vibrations for a smooth experience when turning larger and more precise pieces.

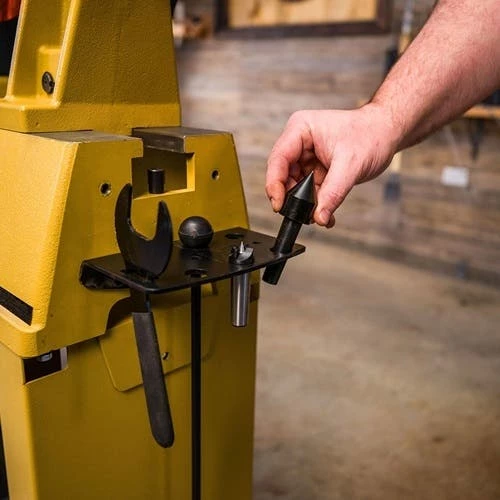

- Attached tool caddy allows convenient access to centers; wrenches; and accessories.
- Banjo features a non-marring; pinch style clamp for solid tool rest placement.
MARKET FOCUS:
- Professional Woodworkers.
- Woodturning Hobbyists.
- Furniture Makers.
- Bowl and Plate Turners.
- Students and Instructors.
SPECIFICATIONS:
| Motor | ||
|---|---|---|
| Motor (TEFC) | 1HP/230V/3Ph | |
| Input Power Requirements | 115V | |
| Capacities | ||
| Swing Over Bed (in.) | 14-1/4″ | |
| Swing Over Tool Rest Base (in.) | 10-3/4″ | |
| Working Distance Between Centers (in.) | 19-1/4″ (w/ stop bolt): 20-1/4″ (w/o stop bolt) | |
| Outboard Turning Diameter Max. (in.) | 20-1/4″ | |
| Number of Index Positions | 24; positive locking | |
| Bed Length (in.) | 20 | |
| Spindle | ||
| Spindle Thread Size (in. x TPI) | 1/4″ x 8 | |
| Hole Through Spindle (in.) | 3/8″ | |
| Spindle Taper | MT2 | |
| Speeds (RPM) | 15-3600 15-900/ 30-1800/ 60-3600 | |
| Hole Through Tailstock (in.) | 3/8″ | |
| Tailstock Quill Taper | MT2 | |
| Tail Stock Quill Travel (in.) | ACME lead screw; 4-1/4″ | |
| Centerline of Spindle to Floor (in.) | N/A | |
| Dimensions | ||
| Overall Dimensions (L x W x H / in.) | 52″ x 24″ x 18″ | |
| Net Weight (lbs.) | 185 | |
“
