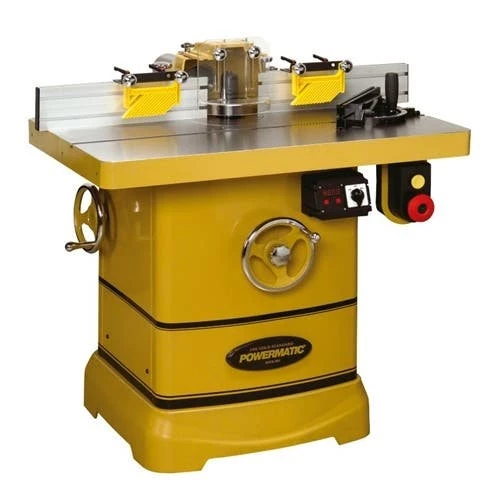

Powermatic PM2700 5HP Shaper 1280101C

• Powermatic
• *** FREE SHIPPING IS AVAILABLE FOR THIS PRODUCT ***
• Integrated caster system built into the cast iron base for instant shop mobility
• Spindle height digital readout for making fine incremental adjustments on multiple passes
• Heavy duty 30 x 40″ precision ground tabletop for smooth stock feeding
• Convenient quick lock belt tensioning for easy speed adjustment
• Industrial fence system with fine adjust dials for more precise positioning
• 3HP totally enclosed motor offers plenty of power
• Two spindle speeds (reversible) for a variety of work
• Superior clear cutter guard promotes safety; allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• Fence has dual featherboards for work holding
• Dual 4″ ports for attachment to dust collection system
• Also Available in 230/460; 3 Phase 1280102C
• Standard Equipment:
• 3/4″ and 1-1/4″ interchangeable spindle collets
• Spindle height digital readout
• Featherboard hold downs
• Deluxe miter gauge
• Integrated caster system
• Specifications:
• Part Number:    1280100C
• Spindle Speed:    7500 and 10;000 RPM
• Reversable:    Yes
• Spindle Diameter:    3/4 and 1 1/4 in
• Spindle Size Under Nut:    3/4 (3 3/4) and 1 1/4 (6) in
• Spindle Travel:    4
• Table Size:    40 x 30 in
• Table Height From Floor:    35.5 in
• Table Opening Diameter:    7 3/8 in
• Table Insert Opening Diameter:    2 35/64; 4 5/32 and 5 3/4 in
• Fence Size (L x H):    18 3/4 x 4 7/8 in
• Table Inserts:    2 35/64; 4 5/32 and 5 3/4 in
• Router Bit Collet Diameter:    1/4 and 1/2 in (optional)
• Dust Port Outside Diameter:    4 in (dual ports)
• Dust Collection Minimum CFM Required:    600 cu.ft/min
• Electrical Controls – Magnetic Starter:    Yes
• Digital Readouts    :    spindle height
• Motor Power:    5 HP
• Motor Voltage:    230 V
• Motor Current:    14 A
• Motor Phase:    1 Ph
• Web Description:     PM2700 Shaper; 5HP 1PH 230V
• Model Number:    PM2700
• Overall Dimensions:    40x37x45
• Height:    45 inch
• Width:    37 inch
• Length:    40 inch
• Net Weight:    769 pound

“
