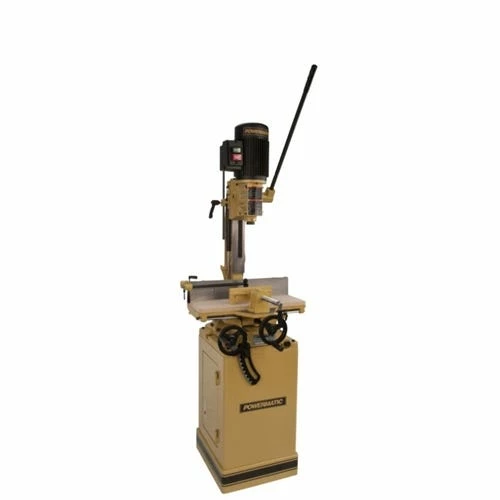

Powermatic Tilt Table Mortiser 719T With Stand 1791264K

• Powermatic
• Sturdy cast iron construction with precision-machined column and table
• Quick position table mounted swiveling vise clamp accommodates angled work pieces
• Feed lever features size positions allowing for quick adjustments
• Table and fence tilt from 0 to 35 for angled mortises
• Gas cylinder controlled rack and pinion system for smooth head raising and lowering
• Hinged chuck door allows easy access for quick bit changes
• Quick adjust depth stop for uniform mortise depths
• Provided 5/8; 3/4″ and 1-1/8″ bushings allow multiple chisel shank sizes
• Handwheels control smooth linear and cross table motions
• Adjustable work stop for repeat cuts
• Specifications
• Part Number:    1791264K
• Spindle Speed:    1725 RPM
• Chuck Size:    in
• Chisel Capacity:    1/4 – 1 in
• Chisel Shank Capacity:    5/8; 3/4; 1 1/8 in
• Head Stroke:    6″
• Chisel Center to Fence:    4 in
• Fence Size (L x H):    4 1/2 x 20 1/4 in
• Base Size:    14 x 16 in
• Base Overall Height:    60 in
• Bushing Size:    5/8; 3/4; 1 1/8 in
• Table Size (L x W):    7 x 20 1/4 in
• Table Tilt:    0 to 35
• Table Travel – Longitudinal:    15 in
• Table Travel – Cross:    4 in
• Motor Power:    1 HP
• Motor Voltage:     115 / 230 V
• Prewired Voltage:    115 V
• Motor Phase:    1 Ph
• Motor Current:    11 / 5.5 A
• Chisel Stroke:    10.75 in
• Model Number:    719T
• Brand:     Powermatic
• Overall Dimensions:     21-1/4 x 21-5/8 x 74
• Height:     74 inch
• Width:     21.625 inch
• Length:     21.25 inch
• Net Weight:     276 pound

“
