RKI Instruments INC RKI Instruments Calibration Station For The GX-3R & GX-3R Pro 81-SDM3R102

RKI Instruments

Calibration Station for the GX-3R & GX-3R Pro 81-SDM3R102

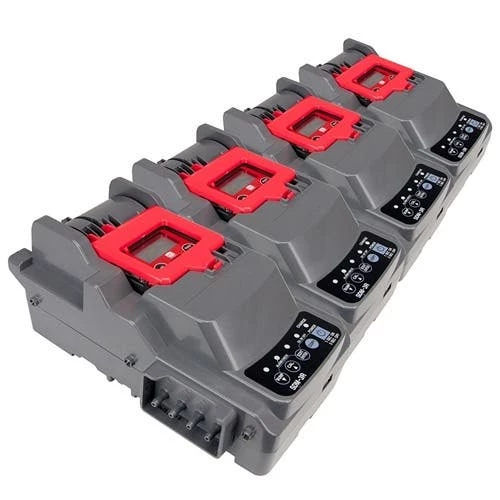

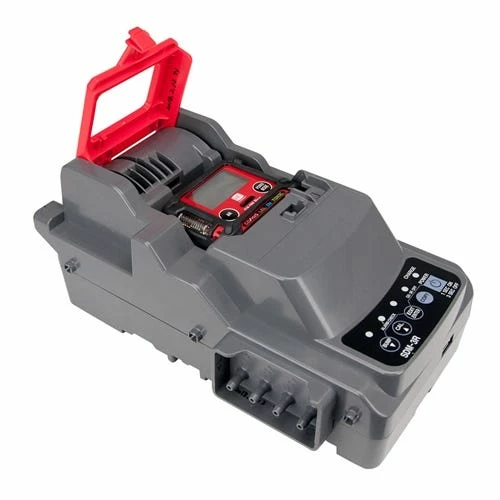

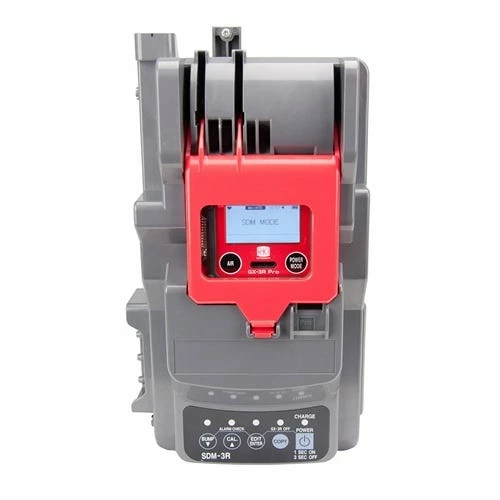

The SDM-3R is a versatile maintenance tool that automates the service of a GX-3R (Pro) portable gas monitor. This docking station can be used as a stand alone device for charging; calibration and bump testing; with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included). Automate how you manage and service GX-3R (Pro) instruments by connecting the SDM-3R to a computer with a USB cable. With the SDM Docking Station controller software; you can simultaneously calibrate; bump test; alarm check; archive data; or charge up to ten instruments.

FEATURES:

• Compatible with both GX-3R and GX-3R Pro.
• Automatically charge; bump test; and/or calibrate.
• Auto on/off of gas detector.
• 3 separate gas inputs.
• Multiple modules (10 max) can use one set of calibration equipment.
• Save Bump Test; Calibration; and Alarm Check records to USB flash drive; computer; or network.
• Includes PC software for viewing/archiving bump test; calibration records; and event data.

PC-CONTROLLED USE:

• Multiple modules connected to a PC (10 max).
• Automatic calibration/bump test option.
• Configure GX-3R (Pro) parameters.
• Archive Bump Test; Calibration; and Alarm Check.
• Archive data to network location.
• Software controlled data retrieval.
• Windows 7; 8; and 10 compatible.

SPECIFICATIONS:

Input Power	AC Adapter with 100 – 240 VAC; 47-63 Hz; 0.4A input and 5.99 VDC; 2A output provided as standard.
Environmental Conditions	For Indoor Use Only: 0° C to 40° C; below 95% Relative Humidity; Non-Condensing
Applicable Instruments	GX-3R and GX-3R Pro
Maximum Number of Records Saved Stand Alone	200 calibrations; or 214 bump test; or 469 alarm check records
Maximum Number of Records Saved PC program Controlled	Unlimited records
5 Ports	3 Calibration gas; 1 fresh air and 1 exhaust

INCLUDES:

• AC Adapter
• USB Flash Drive
• Inlet Air Filter
• 10 Foot Long Exhaust Tube
• One 3 Foot Long Tube for GAS Fitting
• USB Cable; Type A to Type B
