RKI Instruments INC RKI Instruments GX-2012 4 Sensor Multi-Gas Confined Space Gas Detector W/ Li-Ion Battery Pack Kit 72-0290-22-C-51

RKI Instruments

GX-2012 4 Sensor Multi-Gas Confined Space Gas Detector w/ Li-Ion Battery Pack Kit 72-0290-22-C-51

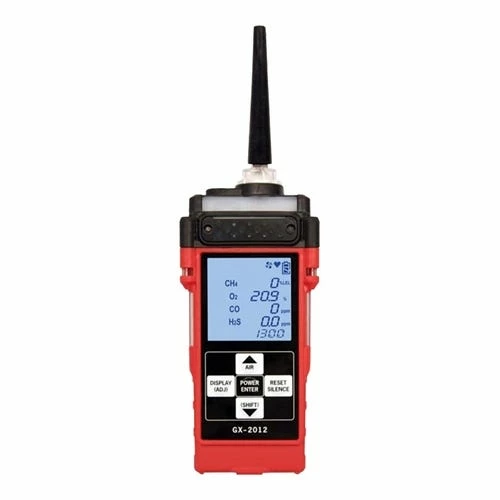

With the GX-2012; you have multiple tools in one instrument. Having 3 operating modes; the GX-2012 can be used for confined space; safety monitoring in it’s Normal Operating mode; for leak investigation in Leak Check mode; and for underground leak checking in Bar Hole mode. The GX-2012’s large LCD display shows all gas readings; battery level; current time; and will automatically backlight in alarm conditions.

FEATURES:

• Monitors ppm LEL; % volume methane; O2; CO and H2S.
• 0 to 100% volume methane option.
• Auto-ranging display of % LEL and % volume.
• 3 Operating modes: Normal; leak check; & bar hole.
• PPM leak detector.
• Adjustable display ranges.
• Visual / audible pulses change with gas concentration.
• CO display in leak check mode.
• Bar hole test mode for underground leak checks.
• Internal sample drawing pump with up to 50′.
• Vibration; visual; and audible alarms.
• Automatic backlight during alarms
• Lithium ion or alkaline battery packs (interchangeable).
• Intrinsically safe; ATEX/IECEx/CE or CSA/CE (Optional).

APPLICATIONS:

• Personal monitoring.
• Confined space entry.
• Refineries / petrochemical.
• Chemical plants.
• Hazardous material.
• Water / wastewater treatment.
• Fire services.
• Mining.

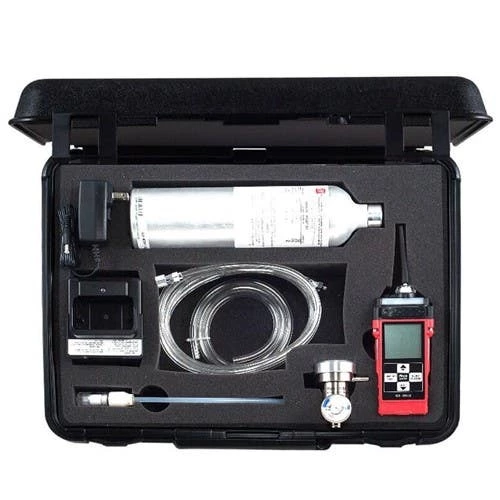

INCLUDES:

• (1) GX-2012 4 Sensor Multi-Gas Confined Space Gas Detector (72-0290-22-B)
• (1) Li-Ion Battery Pack
• (1) 115 VAC Charger
• (1) 34AL cyl H2S/CO/O2/CH4
• (1) Demand Flow Regulator
• (1) Tubing
• (1) Padded Case

SPECIFICATIONS:

Gas Detection Specifications (Part 1)
Gas Detected	Detection Principle	Detection Range
Combustible Gases (Methane as standard)	Catalytic combustion	0 ~ 100% LEL 0 ~ 500 / 1;000 / 2;000 / 5;000 ppm
% Volume Methane	Thermal conductivity	0 ~ 100% Vol.
Oxygen (O2)	Galvanic cell	0 ~ 40% Vol.
Hydrogen Sulfide (H2S)	Electrochemical cell	0 ~ 100 ppm (optional 0-500 ppm)
Carbon Monoxide (CO)	Electrochemical cell	0 ~ 500 ppm
Gas Detection Specifications (Part 2)
Gas Detected	Accuracy Statement (whichever is greater)	Preset Alarms (User Adjustable)
Combustible Gases (Methane as standard)	± 5% of reading or ± 2% LEL(LEL mode only)	1st alarm 10% LEL 2nd alarm 50% LEL Over alarm 100% LEL
% Volume Methane	± 5% of reading or ± 2% of full scale	No alarms for % Vol. CH4
Oxygen (O2)	± 0.5% O2	Low alarm 19.5% High alarm 23.5% Over alarm 40.0%
Hydrogen Sulfide (H2S)	± 5% of reading or ± 2 ppm H2S	1st 5 ppm 2nd 30 ppm TWA 10 ppm STEL 15 ppm Over 100 ppm
Carbon Monoxide (CO)	± 5% of reading or ± 5 ppm CO	1st 25 ppm 2nd 50 ppm TWA 25 ppm STEL 200 ppm Over 500 ppm
General Specifications
Sampling Method	Internal sample pump; flow rate nominal 0.5 LPM; includes hydrophobic filter
Display	Digital LCD with 7 segments; auto backlight during alarm
Alarms Types	Gas alarms: 1st and 2nd; STEL; TWA (user adjustable) and OVER
	Trouble alarms: Sensor connection; low battery; low flow; circuit trouble and calibration error
Alarm Methods	Gas alarms: Flashing lights; two tone buzzer; and vibration
	Trouble alarms: Flashing lights; trouble displayed; intermittent buzzer; and vibration
Operating Temp. & Humidity	-20°C to +50°C (-4°F to 122°F) 0 to 95% RH; non-condensing
Response Time	Within 30 seconds (T90)
Continuous Operation	Alkaline battery: 15 hours Li-Ion battery: 10 hours 70°F (21°C)
Power Source	Li-Ion battery pack; or 3 “AA” Alkaline battery pack; interchangeable
Safety Rating	ATEX; TIIS; IECEx; CE; CSA classified (as standard); as intrinsically safe. Class I; Division 1; Groups A; B; C; D (optional version available)
Dimension & Weight	Approx. 143 (H) x 71 (W) x 43 (D) mm (5.6” H x 2.8” W x 1.6” D); approx. 350 g (12.3 ounces)
Case Material	High dust & water resistant design. RFI shielded high impact plastic with protective rubber overmolding
Controls	Five buttons: POWER / ENTER; DISPLAY; AIR; RESET; SHIFT
Configurations	1; 2; 3; 4; or 5 sensor units; Li-Ion or alkaline battery pack options
Warranty	Two years material and workmanship
Accessories
Standard Accessories	• Belt clip
	• Rubber nozzle; 3.5”		• Datalogging software		• 10” Probe		• Manual		• Quick reference card		• 10’ Hose		• Training CD
	Optional Accessories	• SDM-2012 calibration stations
		• Calibration kit		•DC Charger		• Sample draw hoses (10’ standard; up to 100’ max. available)

“
