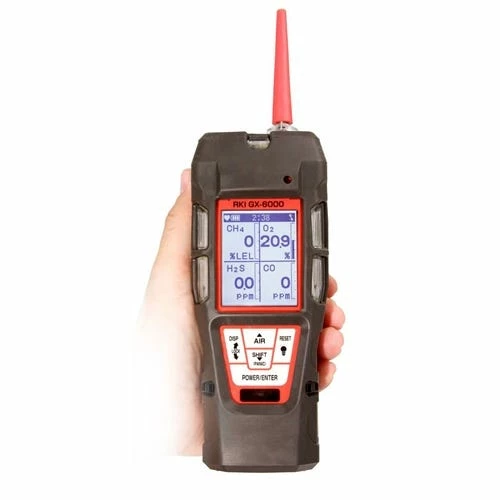

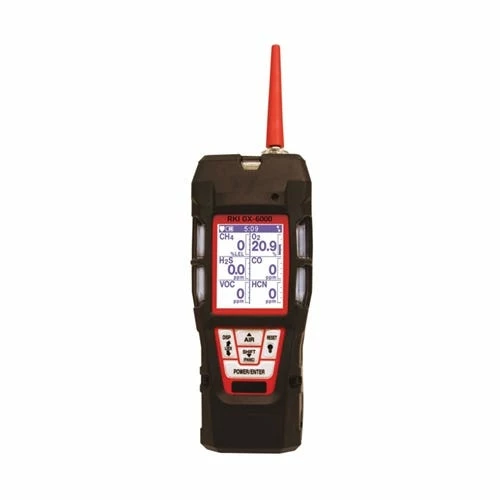

RKI Instruments INC RKI Instruments GX-6000 For LEL / O2 / H2S / CO W/ Li-Ion Battery Pack & 115 VAC Charger 72-6AXX-C

RKI Instruments

GX-6000 for LEL / O2 / H2S / CO w/ Li-Ion battery pack & 115 VAC charger 72-6AXX-C

The GX-6000 is the only multi-gas instrument with an 11.7 PID sensor option. If there are other requirements like confined space safety; a second instrument would be required. The GX-6000 provides the flexibility to configure one instrument for multiple applications;This reduces the need to purchase separate instruments for specific applications.

FEATURES:

• 6 Operating modes.
• Smallest 6 gas sample draw.
• 2 Interchangeable smart sensor slots.
• 4 PID options: 10.6 (2 ranges) eV; 10.0 eV; and 11.7 eV lamps.
• PID library of over 600 VOCs — Easily switch target VOC from customizable user list or a recently used list.
• Benzene specific version.
• PPM Leak Check mode.
• LEL sensor protection mode.
• Man-down alarm.
• Panic alarm: Auto display rotation.
• Peak-bar display.
• LED Light source.
• Internal sample pump.
• Light weight; small; rugged IP-67 design.
• Interchangeable battery packs (Li-ion / alkaline).
• Operates up to 14 hours on Li-ion battery pack; fully recharges in 3 hours; 8 hours operation with alkaline pack.
• Field replaceable sensors; batteries; filters and pump.
• Intrinsically safe ATEX / IECEx / cCSAus.

APPLICATIONS:

• Confined Space Entry.
• Hazmat Response Teams.
• Arson Investigation.
• Remediation Site.
• Perimeter Monitoring.
• Leak Detection.
• Landfill Monitoring.
• Winery Tank Entry.

SPECIFICATIONS:

Gases & Detectable Ranges
PID Sensors (Part 1)
Gas	Measuring Range	Reading Increment
10.6 Lamp (600 VOC’s)	0 – 50;000 ppb	1 ppb: ( 5;000 ppb)
	0 – 6;000 ppm	0.1 ppm: ( 600 ppm)
10.0 Lamp (Benzene Specific)	0.1 – 50 ppm	0.01 ppm (0 ~ 10 ppm) / 0.1 ppm (10 ~ 50 ppm)
10.0 Lamp (300 VOC’s)	0 – 100 ppm	0.01 ppm (0 ~ 10 ppm) / 0.1 ppm (10 ~ 100 ppm)
11.7 Lamp (High Voltage Lamp)	0 – 1000 ppm	0.1 ppm
PID Sensors (Part 2)
Gas	Alarm Set Points	Accuracy (which ever is greater)
10.6 Lamp (600 VOC’s)	A1: 5;000 ppb	± 10% of reading; ± 1 digit
	A2: 10;000 ppb
	A1: 400 ppm
	A2: 1;000 ppm
10.0 Lamp (Benzene Specific )	No Alarms
10.0 Lamp 300 VOC’s	A1: 5 ppm / A2: 10 ppm
11.7 Lamp (High Voltage Lamp)	A1: 400 ppm / A2: 1;000 ppm
Galvanic (Part 1)
Gas	Measuring Range	Reading Increment
Oxygen (O2)	0 – 40.0% Vol.	0.1% Vol.
Galvanic (Part 2)
Gas	Alarm Set Points	Accuracy (which ever is greater)
Oxygen (O2)	A1: 19.5 Vol.	± 0.5% O2
	A2: 23.5 Vol.
Electro Chemical (Part 1)
Gas	Measuring Range	Reading Increment
Carbon Monoxide (CO)	0 – 500 ppm	1 ppm
Hydrogen Sulfide (H2S)	0 – 100.0 ppm	0.5 ppm
Electro Chemical (Part 2)
Gas	Alarm Set Points	Accuracy (which ever is greater)
Carbon Monoxide (CO)	A1: 25 ppm	± 5% of reading or ± 5 ppm
	A2: 50 ppm
	TWA 25 ppm
	STEL 200 ppm
Hydrogen Sulfide (H2S)	A1: 5.0 ppm	± 5% of reading or ± 2 ppm
	A2: 30.0 ppm
	TWA 1.0 ppm
	STEL 5.0 ppm
Toxics (EC Sensors) (Part 1)
Gas	Measuring Range	Reading Increment
Ammonia (NH3)	0 – 400.0 ppm	0.5 ppm
Chlorine (Cl2)	0 – 10.00 ppm	0.05 ppm
Hydrogen Cyanide (HCN)	0 – 15.0 ppm	0.1 ppm
Nitrogen Dioxide (NO2)	0 – 20.00 ppm	0.05 ppm
Sulfur Dioxide (SO2)	0 – 99.90 ppm
Toxics (EC Sensors) (Part 2)
Gas	Alarm Set Points	Accuracy (which ever is greater)
Ammonia (NH3)	A1: 25 ppm	± 10% of reading or ± 5% of full scale
	A2: 50 ppm
Chlorine (Cl2)	A1: 0.5 ppm
	A2: 1.0 ppm
Hydrogen Cyanide (HCN)	A1: 5 ppm
	A2: 10 ppm
Nitrogen Dioxide (NO2)	A1: 3 ppm
	A2: 6 ppm
Sulfur Dioxide (SO2)	A1: 2 ppm
	A2: 5 ppm
IR Sensors (Part 1)
Gas	Measuring Range	Reading Increment
Carbon Dioxide (CO2)	0 – 10;000 ppm	20 ppm
	0 – 10.00% Vol.	0.02%
Methane (CH4)	0 – 100% LEL 0 – 100% Vol.	1% LEL/ 0.5% Vol
Hydrocarbons	0 – 100% LEL 0 – 30% Vol.
IR Sensors (Part 2)
Gas	Alarm Set Points	Accuracy (which ever is greater)
Carbon Dioxide (CO2)	A1: 5;000 ppm	± 5% of reading or ± 2% of full scale
	TWA 5;000 ppm
	A1: 0.50% Vol
	A2: 3.00% Vol
	STEL 3.00% Vol
	TWA 0.50% Vol
Methane (CH4)	A1: 10% LEL / A2: 50% LEL
Hydrocarbons
Catalytic (Part 1)
Gas	Measuring Range	Reading Increment
Hydrocarbons (CH4; std)	0 – 100% LEL	1% LEL
Catalytic (Part 2)
Gas	Alarm Set Points	Accuracy (which ever is greater)
Hydrocarbons (CH4; std)	A1: 10%LEL	± 5% of reading or ± 2% LEL
	A2: 50%LEL
Alarm Types
Gas alarm	Man-down	Trouble
Low and high adjustable	1st – self reset 2nd – latching	Low flow Sensor connection Low battery Circuit error Calibration range
General Specifications
Sample Method	Sample draw pump; flow rate 0.45 LPM; 50 foot sample range
Display	Digital LCD; autobacklight; peak bar display; auto display rotation; and customize order of gases
Audible Alarm	95 dB at 1 ft.
Languages	English; Spanish; French; German; Italian; Japanese; Korean; Portuguese; Russian
Continuous Operation	14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack)
Operating Temp. & Humidity	-4°F to 122°F (-20°C ~ +50?); 0- 95% RH non condensing
Dimensions	2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack)
Case Material	Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design / Approvals	Explosion proof: IECEx ; ATEX ; TIIS ; cCSAus Explosion class :Ex ia IIC T4 Ga Others: CE Marking
Warranty	Two years material (including sensors) and workmanship. One year for PID sensor (Two monthsfor 11.7 eV lamp)
Accessories
Standard Accessories	• Rubber boot
	• Belt clip		• Hand strap		• Tapper nozzle		• Probe with hydrophobic & dust filter 3’ teflon lined hose		• Benzene pre-filter tubes and holder (benzene versions)
	Optional Accessories	• SDM-6000 calibration station
		• Bundles with instrument carrying case and accessories		• Flexible probes		• Up to 50 foot sample hoses		• Filter set		• IrDA cable

“
