RKI Instruments INC RKI Instruments Single Stand Alone Calibration Station For GX-2012 Gas Detector 81-SDM2012-02

RKI Instruments

Single Stand Alone Calibration Station For GX-2012 Gas Detector 81-SDM2012-02

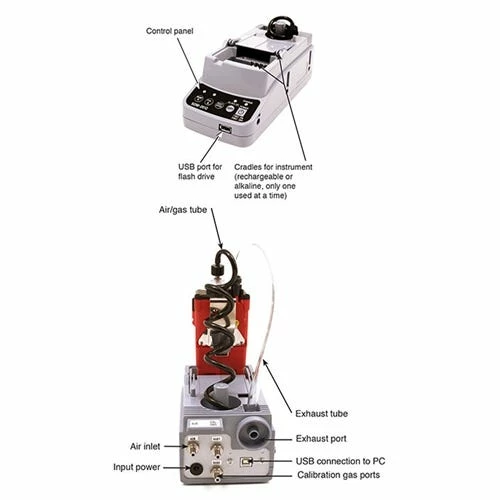

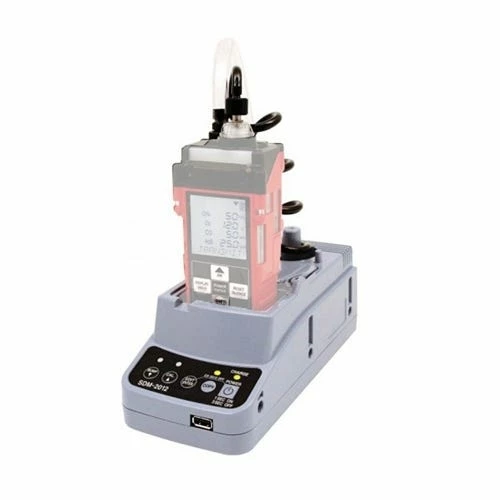

RKI’s new SDM-2012 calibration station for the GX-2012 is now available with advanced features for charging; calibration; & bump testing. Once you power up the GX-2012 inside the SDM-2012 calibration module; the GX-2012’s display will indicate whether it’s transmitting data; bump testing; calibrating; as well as the results of the bump test or calibration.

FEATURES:

• Stand-alone station (no PC Required).
• Charging (Li-Ion Battery Pack).
• Calibration.
• Bump Test.
• Save Bump Test and Calibration records.
• Bump test and calibration records copy to USB jump drive.
• Includes PC software for viewing/ archiving bump test and calibration records.

SPECIFICATIONS:

Input Power	12 VDC NOTE: AC Adapter with 100 – 240 VAC; 50/60 Hz; 0.6A input and 12 VDC; 1.2A output provided as standard.
Environmental Conditions	For Indoor Use Only • -10° C to 40° C; below 80% Relative Humidity; Non-Condensing
Applicable Instruments	GX-2012 and Gas Tracer
Maximum Number of Records Saved	200 (stand-alone)
Number of Calibration Gas Cylinders	Up to two calibration gas cylinders per bump test or calibration at a time
Standard Accessories	• AC Adapter
	• USB Flash Drive
	• Single Module Data Viewer Software
	• SDM Docking Station PC Controller Software
	• Inlet Air Filter
	• Instruction Manual
	• 10 Foot Long Exhaust Tube
	• Two 3 Foot Long Tubes for GAS 1 and GAS 2 Fittings
	• 3 T-Fittings for PC Controlled Configuration
	• USB Cable; Type A to Type B

“
