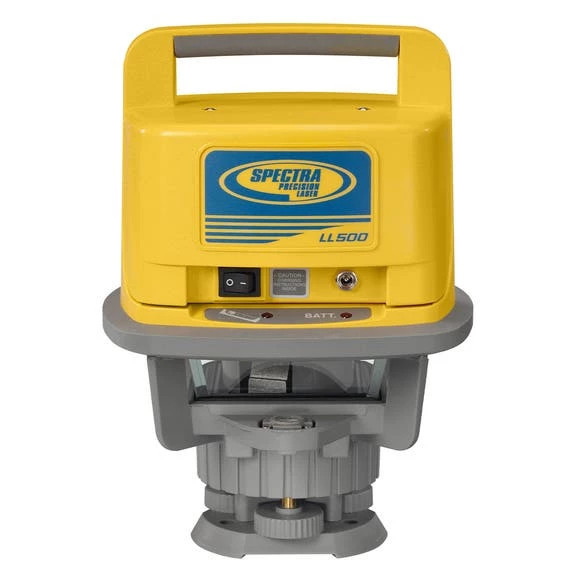

Spectra Precision Laser Level Kit W/ HL700 Receiver LL500

Spectra Precision

Laser Level Kit w/ HL700 Receiver LL500

The Spectra Precision Laser level LL500 Laser Level is a one-person leveling system designed for longer range
measurements across your entire site. Accurate, stable and reliable, the LL500 features a 1,650 ft (500 m) working
diameter which increases productivity by reducing the need for multiple setups on a large job site.

FEATURES:

• High accuracy with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes.
• One person elevation control with 1,650 ft (500 m) diameter range increases productivity.
• Alkaline or rechargeable batteries keep the unit working and minimize downtime due to power loss.
• Self-leveling with built-in shut off for increased accuracy over the entire work area and reduced errors.
• Includes HL700 Digital Readout Receiver and C70 receiver clamp.
• Reduces the amount of time required for each grade shot, so more grade shots are taken for increased accuracy.
• Temperature compensation allows you to meet your toughest accuracy requirements in any type of variable environmental conditions.

SPECIFICATIONS:

Self-Leveling Range	± 11 arc minutes
Compensation Type	Wire Hung, Air Damped
Accuracy	1.5 mm at 30 m (1/16 in at 100 ft) ±10 arc seconds
Laser Type	670 nm visible, Class II
Battery Life 20°C (68°F)	4 D-Cell Alkaline – 175 hrs / NiMH – 100 hrs, NiCad – 75 hrs
Operating Diameter	500 m (1,600 ft)
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Tripod Mount	5/8″ x 11′
Warranty	5 Years
