Spectra Precision Laser Spectra Precision 1,650′ Diameter Self-level Rotary Laser Level; Interior/ Exterior Kit LL300N-2

Spectra Precision

1650 Ft Diameter Self-level Rotary Laser Level; Interior/ Exterior Kit LL300N-2

Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete; or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop.

FEATURES:

• Automatic self-leveling
• Accuracy 3/32 inch @ 100 ft (2.2mm @ 30 m)
• Working range of 1;650 ft (500 m) diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert – unit stops rotating
• when jarred to avoid erroneous readings
• Single axis manual slope mode(with RC601 Remote Control)
• Complete kit available and fits in one casewith tripod and grade rod
• Extremely durable and portable
• 5 Year warranty

INCLUDES:

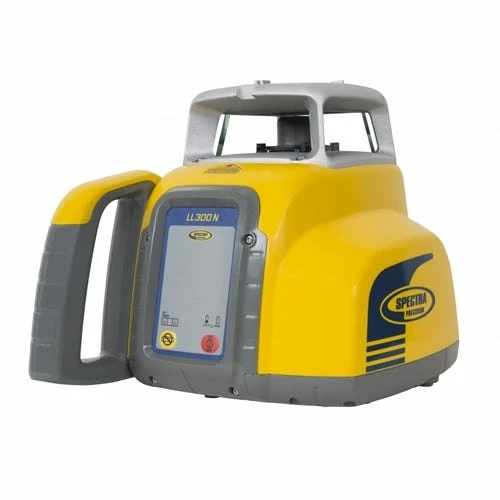

• LL300N Laser Level
• HL450 Laser Receiver
• Clamp C45
• Q104025 Tripod
• GR152 Grade Rod Inches 15FT

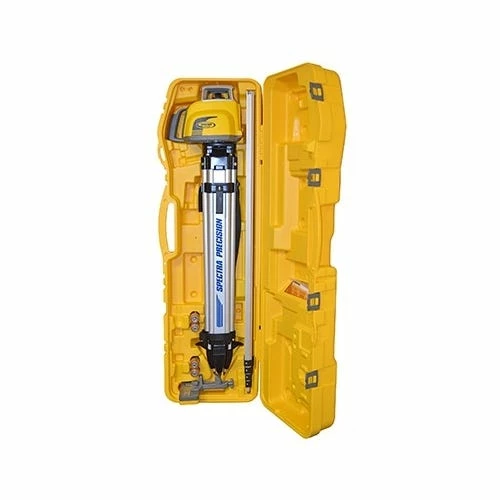

• All in one Carrying Case

SPECIFICATIONS:

LL300N Laser Specifications
Laser Source:	650 nm; Class 2;
Laser Accuracy:	±3/32 in at 100 ft (±2.2 mm at 30 m)
Operating Range:	1;650 ft (500 m) diameter
Self-leveling Range:	±5 degrees
Compensation Method:	Electronic self-leveling
Drop Height on Concrete Performance:	3 ft (1 m)
Single Axis Manual Slope Mode:	Yes (w/self-leveling modeon the second axis); with optional RC601 remote control
Out-of-level Warning:	Rotor stops; red out-of-level HI-LED flashes
Power Source:	4 x D-cell NiMH or alkaline batteries
Battery Life:	Rechargeable – 45 hours; Alkaline – 90 hours
Battery Status LED:	Flashing red LED
Rotation Speed:	600 RPM
Tripod Mount (Horizontal and Vertical):	5/8” x 11
Operating Temperature:	-4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature:	-4 °F to 158 °F (-20 °C to 70 °C)
Water Resistant:	Yes; IP66
Size:	10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm)
Weight:	5.9 lbs (2;7 kg)
Warranty:	5 Years
HL450 Receiver Specifications
Digital Readout Units:	mm; ft; in; frac
Reception Height:	4 inches (102 mm)
Three On-grade Sensitivities:	– Fine ~1/16 in (1 mm)
	– Medium ~1/4 in (5 mm)	– Calibration Mode ~1/64 in (0.1 mm)
	Battery Life (2 x AA):	70+ hrs
Automatic Shutoff:	30 minutes
Operating Temp.:	-4°F to 122°F (-20°C to 50°C)
Dust & Waterproof:	Yes IP67
Weight without Clamp:	13.1 oz (0.371 kg)
Warranty:	3 Years; 2 Years “No Excuses”

“
