Spectra Precision Laser Spectra Precision 2,600′ Diameter Interior/ Exterior; Horizontal/ Vertical Laser W/ Receiver HV302GC-2

Spectra Precision

Medium Range Interior/ Exterior; Horizontal/ Vertical Laser w/ Receiver HV302GC-2

FEATURES:

• Automatic horizontal and vertical self-leveling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of 800 m (2;600 ft) diameter
• High-visibility beam – easily visible even inbrightly lit conditions
• Split beam – enables plumb point transferand 90-degree layout
• Height of Instrument Alert – unit stops rotatingwhen jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Radio communication between the HL760DRO receiver and the laser provides automaticGrade Matching and PlaneLok
• “Fingerprint” function of the HL760 DROreceiver only accepts the beam from the laserit is paired with
• Extremely durable and portable

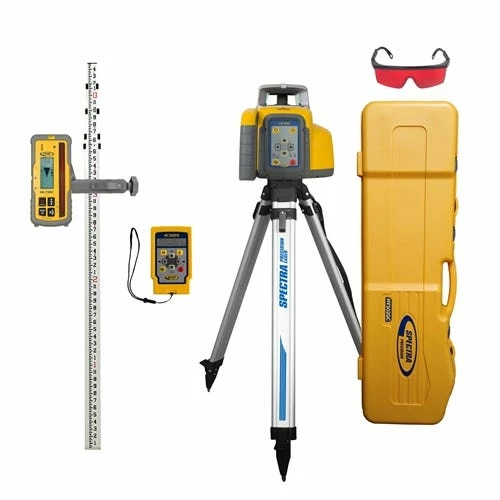

INCLUDES:

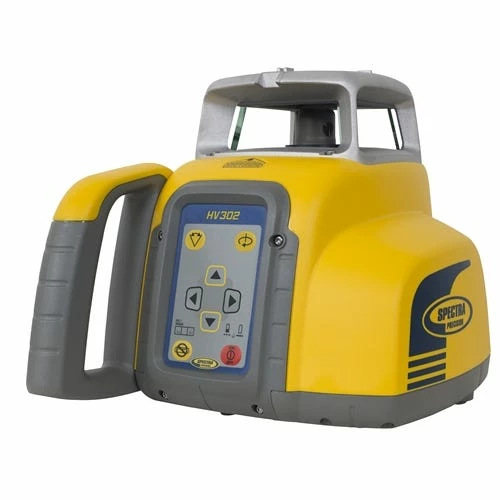

• HV302 Horizontal Vertical Laser
• RC402N Radio Romote Control
• HL760 Laser Receiver
• C70 Adapter
• 105516 Vertical Adapter for HL Receiver
• GR152 Grade Rod Inches 15ft
• Q104025 Tripod
• Q100206 Laser Glasses
• All In One Carrying Case”

SPECIFICATIONS:

Leveling accuracy1;3:	± 1.5 mm/30 m;1/16“ @ 100 ft; 10 arc seconds
Operating diameter	1;2: appr. 800 m (2600 feet)
Rotation:	0; 10; 80; 200; 600 rpm
Pre-selected scan sizes:	5°; 15°; 45°; 90°; 180°and 0
Laser type:	red diode laser 600-680 nm
Laser class :	Class 3A/3R; max. 5 mW
Self-leveling range:	± 5° (±9%)
Leveling indicators:	LED flashes
Radio range (HL760):	up to 100 m (330 ft)
Power source:	10.000 mAh NiMH battery pack
Battery life :	45 hours NiMH; 60 hours alkaline
Operating temp.:	-20°C to 50°C (-4°F to 122°F)
Storage temp.:	-20°C to 70°C (-4°F to 158°F)
Tripod attachments:	5/8 x 11 horizontally and vertically
Dust and waterproof:	Yes – IP66
Weight:	3.1 kg (6.8 lbs)
Low voltage indication:	LED battery indicator
Low voltage disconnection:	unit shuts off
Warranty:	5 Years
RC402N Remote Control Specifications
Operating range1;3:	up to 100 m (330 ft)
Power source:	2 x 1.5V AA alkaline batteries
Battery life1	: 130 hours
Dust and waterproof:	Yes – IP66
Weight:	0.26 kg (0.57 lbs)
HL760 Digital Readout Receiver
Digital readout units:	mm; cm; ft; in; frac. in
Reception height:	127 mm (5 inches)
Six On-grade sensitivities:	– Ultra Fine 0.5 mm (~1/32 in)
	– Super Fine 1 mm (~1/16 in)	– Fine 2 mm (~1/8 in)	– Medium 5 mm (~1/4 in)	– Coarse 10 mm (~1/2 in)	– Calibration Mode 0.1 mm (~1/64 in)
	Battery life (2 x AA):	60+ hours continuous operation
	Auto shut-off:	30 minutes/24 hours
	Operating temp.:	-20°C to 50°C (-4°F to 122°F)
	Dust and waterproof:	Yes – IP67
Weight:	0.37 kg (13.1 oz)
Warranty:	3 Years “No Excuses”

“
