Spectra Precision Laser Spectra Precision 2,600′ Diameter Self-level Rotary Laser Level; Interior/ Exterior Kit LL300S-27

Spectra Precision

2600 Ft Diameter Self-level Rotary Laser Level; Interior/ Exterior Kit LL300S-27

The LL300S is easy to use: turn it on; it levels; it spins. With the addition of the arrow buttons on the transmitter; grade matching can be performed whilst the other axis remains self levelled.

FEATURES:

• Automatic self-leveling
• Accuracy 1/16 inch @ 100 ft (1.5mm @ 30 m)
• Working range of 2;600 ft (800 m) diameter
• Simple keypad for easy grade matching
• Height of Instrument Alert – unit stops rotatingwhen jarred to avoid erroneous readings
• Long range Radio remote control (optional)
• Complete kit available and fits in one casewith tripod and grade rod
• Extremely durable and portable
• 5 Year warranty

INCLUDES:

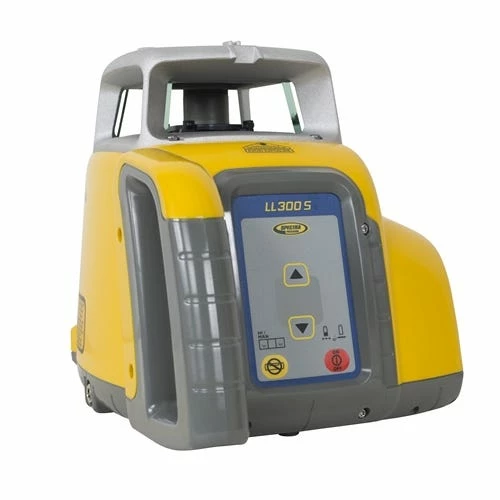

• LL300S Laser Level
• HL760 Laser Receiver
• C70 Adaptor
• Q104025 Tripod
• GR152 Grade Rod Inches 15FT

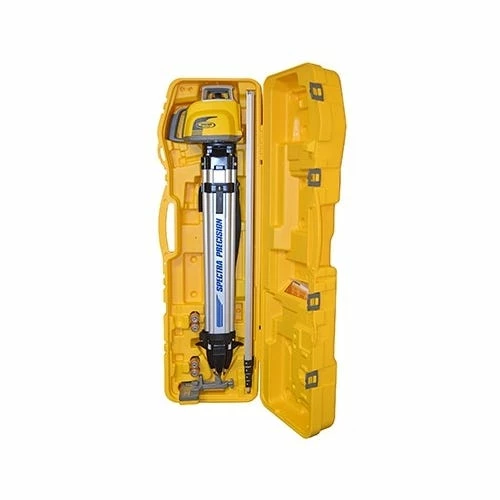

• All in one Carrying Case

SPECIFICATIONS:

LL300S Laser Specifications
Laser Source:	650 nm; Class 2;
Laser Accuracy:	±1/16 in at 100 ft (±1.5 mm at 30 m)
Operating Range:	2;600 ft (800 m) diameter
Operating Range (RC402N):	330 ft (100 m)
Self-leveling Range:	±5 degrees
Compensation Method:	Electronic self-leveling
Drop Height on Concrete Performance:	3 ft (1 m)
Single Axis Manual Slope Mode:	Yes (w/self-leveling modeon the second axis)
Out-of-level Warning:	Rotor stops; red out-of-level HI/MAN-LED flashes
Power Source:	4 x D-cell NiMH or alkaline batteries
Battery Life:	Rechargeable – 47 hours; Alkaline – 60 hours
Battery Status LED:	Flashing red LED
Rotation Speed:	600 RPM
Tripod Mount (Horizontal and Vertical):	5/8” x 11
Operating Temperature:	-4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature:	-4 °F to 158 °F (-20 °C to 70 °C)
Water and Dust Protection:	Yes; IP66
Size:	10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm)
Weight:	5.9 lbs (2;7 kg)
Warranty:	5 Years
HL450 Receiver Specifications
Digital Readout Units:	mm; ft; in; frac
Reception Height:	4 inches (102 mm)
Three On-grade Sensitivities:	– Fine ~1/16 in (1 mm)
	– Medium ~1/4 in (5 mm)	– Calibration Mode ~1/64 in (0.1 mm)
	Battery Life (2 x AA):	70+ hrs
Automatic Shutoff:	30 minutes
Operating Temp.:	-4°F to 122°F (-20°C to 50°C)
Dust & Waterproof:	Yes IP67
Weight without Clamp:	13.1 oz (0.371 kg)
Warranty:	3 Years; 2 Years “No Excuses”

“
