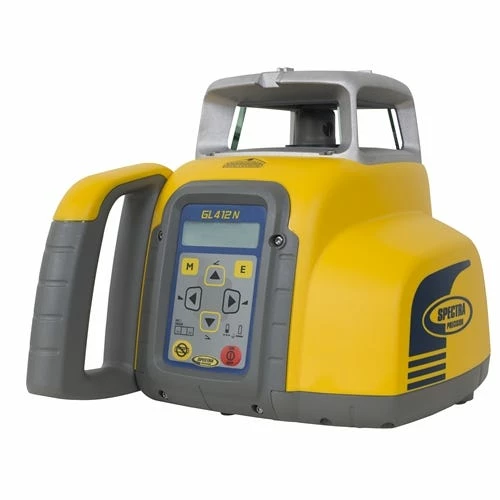

Spectra Precision Laser Spectra Precision 2,600′ Diameter Self-Leveling Grade Laser W/ Receiver GL412N

Spectra Precision

2;600 ft. Diameter Self-Leveling Grade Laser w/ Receiver GL412N

FEATURES:

• Automatic horizontal and vertical self-leveling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of 800 m (2;600 ft) diameter
• Radio communication between the HL760DRO receiver and the laser provides automaticGrade Matching and PlaneLok
• “Fingerprint” function of the HL760 DROreceiver only accepts the beam from the laserit is paired with
• Height of Instrument Alert – unit stops rotatingwhen jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Selection of Sensitivity – accurate even in highwinds or on high vibration job sites
• Extremely durable and portable
• 5 Year warranty

SPECIFICATIONS:

Leveling accuracy	± 1.5 mm/30 m;1/16“ @ 100 ft; 10 arc seconds
Operating diameter	appr. 800 m (2600 feet)Rotation: 300; 600 rpm
Laser type	red diode laser 650 nm
Laser class	Class 2;
Self-leveling range	± 5° (±9%)
Leveling indicators	LCD indications and LED flashes
Radio range (HL760)	up to 100 m (330 ft)
Power source	10.000 mAh NiMH battery pack
Battery life	35 hours NiMH; 50 hours alkaline
Operating temp.	-20°C to 50°C (-4°F to 122°F)
Storage temp.	-20°C to 70°C (-4°F to 158°F)
Tripod attachments	5/8 x 11 horizontally and vertically
Dust and waterproof	Yes – IP66
Weight	3.1 kg (6.8 lbs)
Low voltage indication	LCD battery indicator
Low voltage disconnection	unit shuts off
Warranty	5 Years
