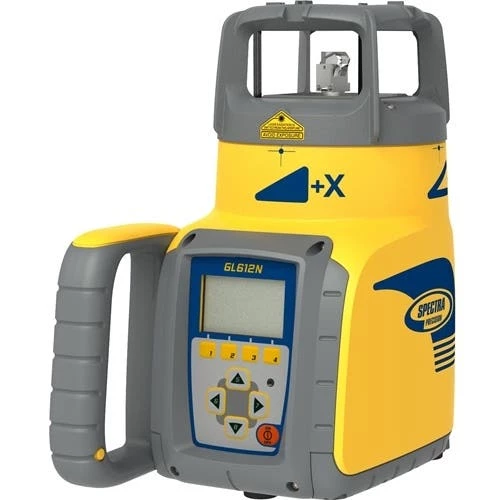

Spectra Precision Laser Spectra Precision 2,600′ Diameter Single Grade Laser GL612N

Spectra Precision

2;600 ft. Diameter Single Grade Laser GL612N

FEATURES:

• Up to 2;600 feet operating range with laser receiver
• ±1/16 inch accuracy at 100 feet
• Self-leveling within ±14 degrees
• Single grade to ±25 %
• Included laser receiver
• Grade matching measures and displays the existing grade
• PlaneLok automatically locks on the laser beam
• Mask mode for using multiple lasers on site
• Electronic leveling vibration filter
• Automatic temperature compensation
• Radio remote control
• Ideal for machine control applications
• 5/8-11 tripod thread
• 40-hour battery life
• Water resistant and dustproof to IP67
• Withstands a 3 feet drop onto concrete
• Graphic LCD display and keypad

SPECIFICATIONS:

Color	Red
Wavelength	650 nm
Classification	Class 2
Direction	Horizontal and vertical
Visibility	Visible
Exterior	Up to 2;600 feet (792 m)
Self Leveling	±14°
Remote	Up to 490 feet (150 m)
Battery Life with Rechargeable Battery Pack	Up to 35 hours
Battery Life with Alkaline Batteries	Up to 40 hours
Power Source	Rechargeable NiMH or alkaline batteries
Battery Life Alert	Yes
Automatic Shut-Off	Yes
Display	Backlit; graphic LCD
Drop Damage Protection	Up to 3 feet drop onto concrete
Protection Class	IP67 (dustproof and water submersible)
Tripod Adapter (Center Screw Thread)	5/8-11
Detecting Indicator	LCD indications and LED flashes
Built-in Bubble Vial	Yes
Adjustable Rotating Speed	300; 600; 900 rpm
Weight	6.8 lbs (3.1 kg)
Warranty	5-year
Remote Control Operating Distance	Up to 490 ft (150 m)
