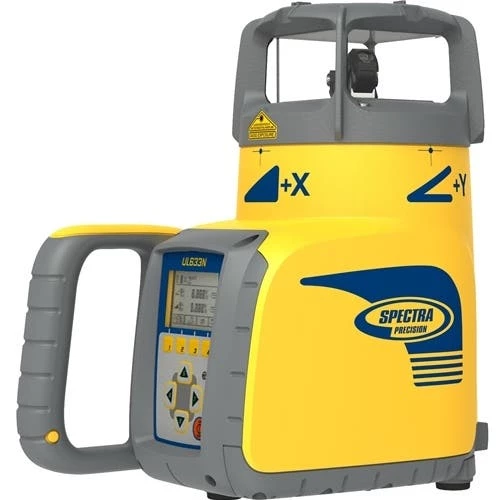

Spectra Precision Laser Spectra Precision 2,600′ Diameter Universal Grade Laser UL633N

Spectra Precision

2;600 ft. Diameter Universal Grade Laser UL633N

FEATURES:

• Up to 2;600-foot operating range
• ±1/16 inch accuracy at 100 feet
• Self-leveling within ±14 degrees
• Grade range to ±25% in X; Y; Z axes
• Automatic axis alignment
• Two HL760 laser receivers
• Spot finder for detecting the plumb beam
• Spot match to measure unknown slopes in existing pipes
• Grade matching measures and displays the existing grade
• PlaneLok automatically locks on the laser beam
• Horizontal angle measurement
• Automatic Spot Align for short pipe laying applications
• Scan mode with five preset sizes and variable adjustment
• Different rotation modes
• Mask mode for using multiple lasers on site
• Electronic leveling vibration filter
• Automatic temperature compensation
• Radio remote control
• Ideal for machine control applications
• 5/8-11 tripod thread
• 40-hour battery life
• Water resistant and dustproof to IP-67
• Withstands 3 feet drop onto concrete
• Graphic LCD display and keypad

SPECIFICATIONS:

Color	Red
Wavelength	650 nm
Classification	Class 3A/3R
Direction	Horizontal and vertical
Visibility	Visible
Exterior	Up to 2;600 feet (800 m)
Self Leveling	±14 degrees
Battery Life with Rechargeable Battery Pack	Up to 35 hours
Battery Life with Alkaline Batteries	Up to 40 hours
Power Source	NiMH or alkaline batteries
Battery Life Alert	Yes
Automatic Shut-Off	Yes
Display	Backlit; graphic LCD
Drop Damage Protection	Up to 3 feet onto concrete
Protection Class	IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)	5/8 x 11
Detecting Indicator	LCD indications and LED flashes
Adjustable Rotating Speed	0 – 750 RPM
Weight	6.8 lbs (3.1 kg)
Warranty	5-year
Remote Control Operating Distance	Up to 490 feet (150 m)
