Spectra Precision Laser Spectra Precision Green Cross Line Laser LT20G

Spectra Precision

Cross Line Laser LT20G

FEATURES:

• Rugged – robust design allows work to continue even after dropping

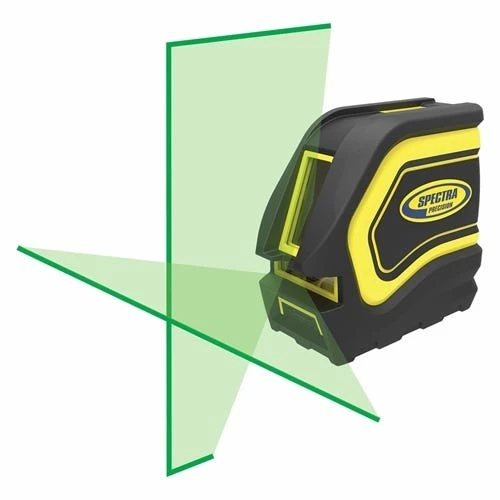

• Bright lines – high visibility green beams are easy to see even in areas with bright light
• Versatile accessory – can be used for any application including magnetic mounting; ceiling track mount and tripod mounts
• Wide fan beam angles – provides maximum coverage
• 3 year no cost warranty – best coverage for professional construction work

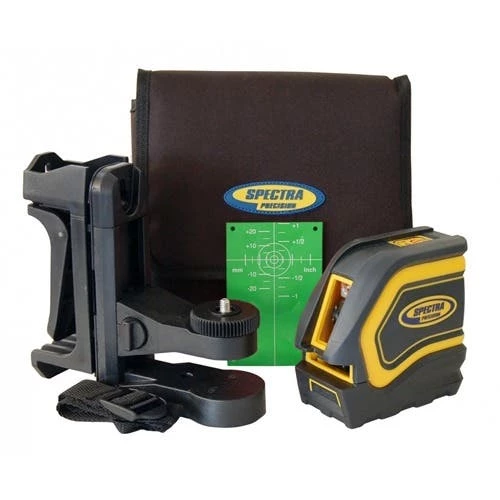

• Includes a soft pouch with belt loop; target; magnetic accessory bracket; ceiling mount; mounting strap; batteries and user guide

INCLUDES:

• Included with the LT20-LT20G: Laser Tool; bracket; ceiling mount; strap forbracket; operator manual; pouch; target; batteries.

SPECIFICATIONS:

Accuracy	±3mm @ 10m (3/16 @ 50 ft)
Visual distance	30m (100 ft)
Laser – power – class – wavelength – fan angle – line thickness	2 x 15mw class 2 515 – 635nm Horizontal 130° / Vertical 150° 2.5 ± 0.5 mm @ 5 m (0.1 in ±0.02 in @ 15 ft)
Power Supply – batteries – battery life – battery indicator	4 x AA 8 – 20 hr Green LED OK; Red LED low power
Out of Level Indication	Laser beam flashes 3 times every 5 seconds
Self Leveling range	± 4° all direction
Environmental – IP – Operating Temperature – Storage temp	IP54 -10° to 45° (14 °F to 113 °F) -20° to 70° (-4 °F to 158 °F)
Drop Specification	1m (3 ft)
Size (l x w x h)	110 x 58 x 104 (4.3 x 2.3 x 4.1″)
Weight	0.35 kg (0.8 lb)

“
