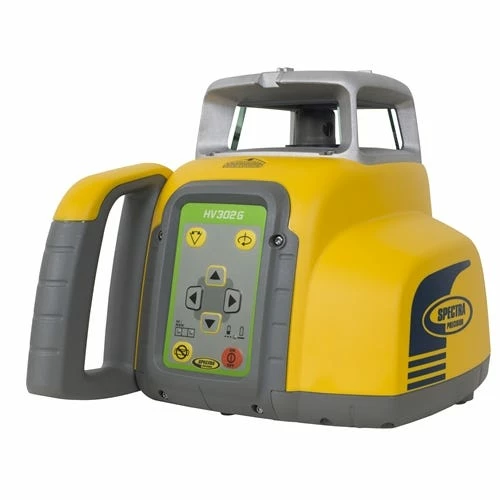

Spectra Precision Laser Spectra Precision HV302G Interior Horizontal/Vertical Laser Green Beam Kit HV302G-1

Spectra Precision

HV302G Interior Horizontal/Vertical Laser Green Beam Kit HV302G-1

FEATURES:

• Automatic horizontal and vertical self-leveling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working visible range of 75 m (250 ft) radius
• High-visibility beam – easily visible even in brightly lit conditions
• Split beam – enables plumb point transfer and 90-degree layout
• Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• HR150U – Interior Receiver with highly visible LEDs and built-in Magnetic Mount
• Radio communication between the HL760U DRO receiver and the laser provides automatic Grade Matching and PlaneLok
• Extremely durable and portable
• 3 Year warranty

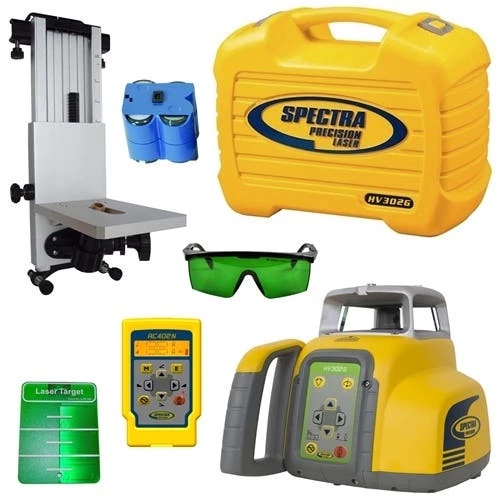

INCLUDES:

• HV302G
• M302 Wall Mount
• RC402N Radio Remote Control
• Q104234 NiMH Rechargeable Batteries
• Worldwide Charger
• Q104252 Laser Green
• Q104124 Magnetic Target Plate Green
• Case

SPECIFICATIONS:

HV302G Specifications
Leveling accuracy1;3:	± 1.5 mm/30 m; 1/16“ @ 100 ft; 10 arc seconds
Operating visible radius	1;2: 75 m (250 feet)
Rotation:	0; 10; 80; 200; 600 rpm
Pre-selected scan sizes:	5°; 15°; 45°; 90°; 180° and 0
Laser type:	green diode laser 520 nm
Laser class :	Class 3A/3R; max. 5 mW
Self-leveling range:	± 5° (±9%)
Leveling indicators:	LED flashes
Radio range (HL760U):	up to 100 m (330 ft)
Power source:	10.000 mAh NiMH battery pack
Battery life :	30 hours NiMH; 25 hours alkaline
Operating temp.:	-20°C to 50°C (-4°F to 122°F)
Storage temp.:	-20°C to 70°C (-4°F to 158°F)
Tripod attachments:	5/8 x 11 horizontally and vertically
Dust and waterproof:	Yes – IP66
Weight:	3.1 kg (6.8 lbs)
Low voltage indication:	LED battery indicator
Low voltage disconnection:	unit shuts off
Warranty:	3 Years
RC402N Remote Control Specifications
Operating range1;3:	up to 100 m (330 ft)
Power source:	2 x 1.5V AA alkaline batteries
Battery life:	130 hours
Dust and waterproof:	Yes – IP66
Weight:	0.26 kg (0.57 lbs)

“
