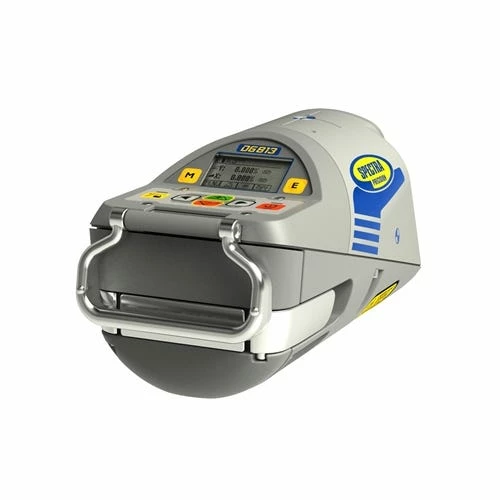

Spectra Precision Laser Spectra Precision Pipe Laser W/ Spot Finder DG813

Spectra Precision

Pipe Laser w/ Spot Finder DG813

FEATURES:

• New reduced length allows easy set-up even in tight inverts
• Large; bright; graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote
• Self levelling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe; it levels; you work
• Bright visible beam that works up to 150m (500ft)
• IP68 protection (dust and waterproof)
• The DG813 has flexible power options that provide 40 hours operating time (NiMH rechargeable batteries with worldwide charger) and 50 hours (alkaline batteries). Alkaline batteries can be used directly in the laser without a separate battery pack. Additional car charger can be purchased to keep you working even when out in remote areas
• Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
• Line Scan – provides a quick alignment to the center of the target for the second day setup
• Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
• RC803 remote works via radio 130m (430ft) or infra-red 150m (500ft) for both “Over the Top” set-up and in pipe/trench set-up

SPECIFICATIONS:

Accuracy	±1/16 inch at 100 feet (±1.5 mm at 30 m or 10 arc seconds)
Self-Leveling Range	-12% to +40%
Protection Class	IP68 dustproof and water immersible beyond 1m
Weight	6.61 lbs (3.98 kg)
Warranty	5-year
Operating Temperature	-4 to 122 °F (-20 to 50 °C)
Tripod Thread	5/8 x 11
Material	Aluminum
Diameter	5.3 inches (13.5 cm)
Cross Axis Leveling	Automatic
Color	Red diode laser
Type/Wavelength	600 – 680 nm
Entry	Step+Go or Digit Select
Display	Percent; Per Mille; Degree
Range	-12% to +40%
Rechargeable Battery/Life	Up to 40 hours
Alkaline Battery/Life	Up to 50 hours
Operating Range	Up to 430 feet above; up to 500 feet in pipes
Alkaline Battery/Life	Up to 130 hours
Display	LCD Graphic
