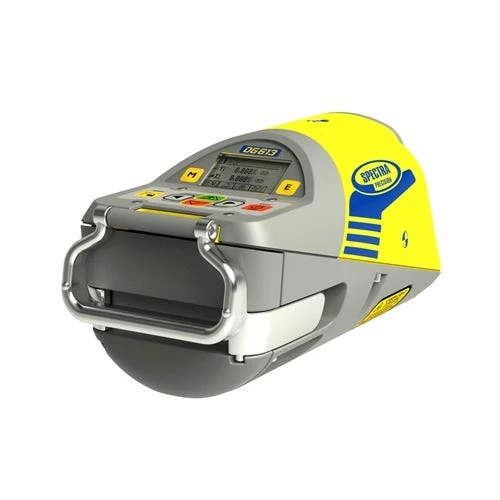

Spectra Precision Laser Spectra Precision Red Beam Pipe Laser DG613

Spectra Precision

Red Beam Pipe Laser DG613

FEATURES:

• New reduced length allows easy set-up even in tight inverts
• Large; bright; graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote
• Self levelling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe; it levels; you work
• Bright visible beam that works up to 150m (500ft)
• IP68 protection (dust and waterproof)
• RC803 remote works via radio 130m (430ft) or infra-red 150m (500ft) for both “over-the-top” set-up and in pipe/trench set-up
• Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment at the first day even in short trenches
• Line Scan – provides a quick alignment to the center of the target for the second day setup
• Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors

SPECIFICATIONS:

Accuracy	±1/16 inch at 100 feet (±1.5 mm at 30 m or 10 arc seconds)
Self-Leveling Range	-12% to +40%
Protection Class	IP68 dustproof and water immersible beyond 1m
Weight	6.61 lbs (3.98 kg)
Dimensions	N/A
Mount	N/A
Warranty	5-year
Operating Temperature	-4 to 122 °F (-20 to 50 °C)
Tripod Thread	5/8 x 11
Material	Aluminum
Diameter	5.3 inches (13.5 cm)
Cross Axis Leveling	Automatic
Color	Red diode laser
Type/Wavelength	600 – 680 nm
Entry	Step+Go or Digit Select
Display	Percent; Per Mille; Degree
Azimuth Range	N/A
Range	-12% to +40%
Rechargeable Battery/Life	Up to 40 hours
Alkaline Battery/Life	Up to 50 hours
Power Cord	N/A
Display	N/A
Operating Range	Up to 430 feet above; up to 500 feet in pipes
Alkaline Battery/Life	Up to 130 hours
